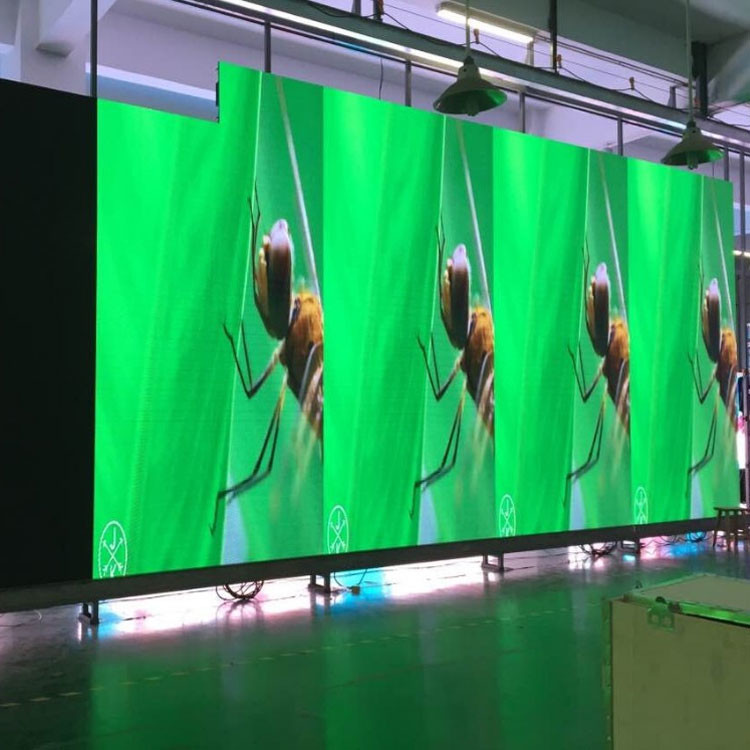

2021 Outdoor Indoor Full Color P3.91 P4.81 Led Rental Screen Video Display
Features:
1.Seamless Splicing, Super Wide Viewing Angle, Highly Accurate Brightness & Color Consistency
2.It delivers an image which is super subtle and without getting tired after a longtime watching
3.Super High Refresh Rate, High Frame Frequency, No Ghosting & Twisting or Smear
4.Front Serviceable Module allows easy Maintenance, Saving Time & Space
5.16 Bit Grey Grade Processing, the color transition will be more natural
Module
| Dimensions(WxH) | 250x250mm | Resolution(WxH) | 64x64dots |
| Pixel Pitch(mm) | 3.91 | Pixel Density | 65536 pixels/m2 |
| Pixel Configuration | SMD 2121 |
| LED parameters | R WL(620-625NM) IV:(600-800mcd) | G: WL:(520-524nm) IV:(1400-1800mcd) | B:WL:(470-472nm) IV :(800-880mcd) |
 |
Cabinet Specification
| Dimensions (WxH) | 500mm x 00mm | Module Quantity | 4 |
| Physical Resolution(WxH) | 128 x 128 dots | Physical Pixels (Total) | 16384 |
| Weight/Cabinet | 6KG | Material | Die-Castiing aluminum |
 |
| Pixel pitch(mm) | P3.91 |
| LED Encapsulation | SMD2121 |
| Density(dot/m2) | 65536 |
| Module size LxH mm | 250*250mm |
| Module Resolution | 64*64dot |
| Cabinet Size | 500*500mm |
| Cabinet resolution | 128*128dot |
| Viewing Distance | 3-8m |
| viwe angle(H) | 140° |
| view angle(V) | 140° |
| Brightness (cd/m²) | 1500 |
| average consumption m² | 550w |
| Max consumption m² | 1100w |
| Driving method | -25-65℃ |
| scan mode | 1/16scan |
| MTBF | 100000 |
| Frame frequency | 60Hz |
| input voltage | 110-220V |
| IP rating | IP55/IP42 |
Ultra lightweight, Slim design
500*500mm standard cabinet size
Ultra-Light die-casting aluminum. ultra-thin thickness with 80mm.For easy transport and Portable;
Dual Service Design
Rental LED Screen adopts Magnet Adsorption LED Panel to make the cabinet is accessed with frontal & rear design.
easy installation for LED panels.
Perfect Cabinet Design With Each Part
Rental LED display is designed with aesthetics and industrial idea.Excellent product came in all details from cabinet handle. cabinet fixed slot, fast lock, magnet adsorption module, module installation knob,Power& signal connector, detachable power boxing, and more
Detachable Back Cover, High Waterproof
Hard Connection Design with detachable Power box and HUB Board,
High IP65 Waterproof with Double Sealing Rubber Ring,
Quick Mounting of Buckles for assemble and disassemble of back cover
Corner Protector for LED
Front service LED sign has four corner protectors in each corner to prevent LED to be damaged,more security for transport, installation, operation, assemble & disassemble foldable design, and easy to use
1. The first level LED chip from Taiwan Epistar
2. With pure golden wire connection in LED
3. Grand A row material for module frame and mask
4. 4 layers PCB and copper plating thickness > 18mil
5. Stainless steel screws when assembly
6. Disassembly and assembly are quick and easy
7. 3 to 5 years warranty
8 .Energy-saving 60% : driving with low frequency current, heat-dissipated roller fans with automatic temperature-controlling device.
9 .Life time >11 years;
